2024 Onward 2 Passenger Electric – Club Car
$9,972.00
Product Features
Dealer Notes
2 pass electric headlights, taillights, mirrors, turn signals, windshield, USB Port
Overview
Product Specs
Overview
Description
From 360° wrap-around bumpers to ergonomic seats, premium colors to easy-to-use design, the Onward 2 passenger provides safety, comfort and stability on the course and around the neighborhood.
Every detail is created with you in mind – from the Monsoon Canopy™ Top that channels water away from passengers to a spacious bagwell and a redesigned interior with more storage space for personal items. Creating the custom golf cart that’s perfect for your needs has never been easier or more fun!
Features
- Light Up Your Adventure: Standard LED headlights, turn signals, and running lamps light your drive, make you more visible to traffic, and help to keep the fun going after sundown.
- Crafted To Outlast: As one of the only personal transportation vehicles constructed from an aircraft-quality aluminum frame, the Onward is uniquely resistant to the elements and will not rust or corrode over time.
- Comfort And Style: Don’t choose between style and substance – enjoy the best of both! Club Car’s wide range of available premium seats provide supreme comfort and style.
- Unprecedented Power: Available in gas, standard electric, AC-drive, and lithium so you’re able to choose what’s best for your lifestyle! Get the leading battery option with the High-Performance Lithium-Ion powered Onward, which delivers outstanding performance with increased hill-climbing power and acceleration. Maintenance-free battery with state of the art management system.
Power
- Motor/ Engine: 250 Amp DC Motor Controller
- Horsepower: 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW)

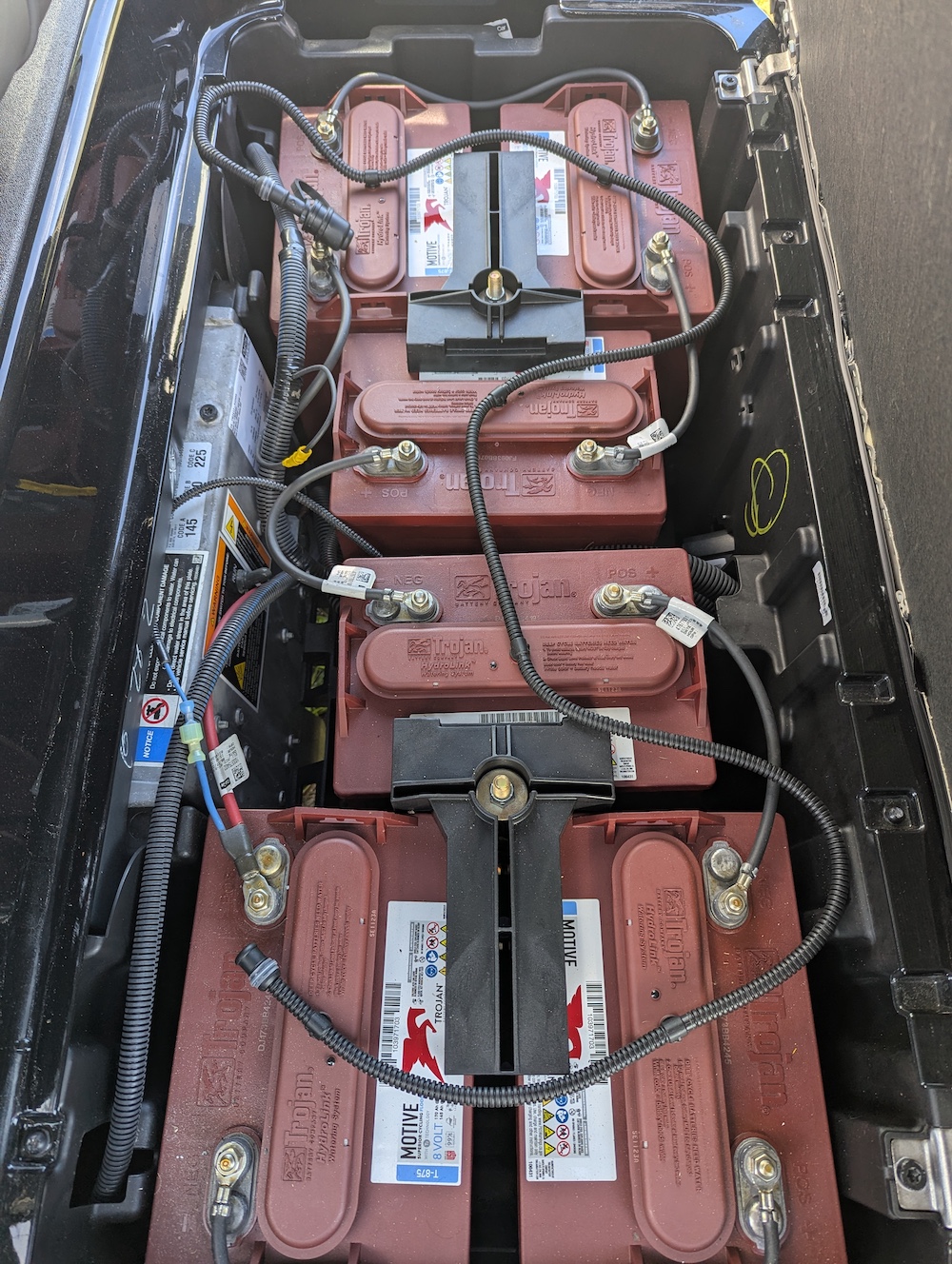

- Batteries: (6) 8-volt
- Charger: E.R.I.C. Automatic, 48-volt; UL, CSA listed
- Max. Speed: 19 mph (30 kph)
- Fuel Capacity: N/A
Steering & Suspension
- Steering: Self-compensating double reduction helical rack & pinion
- Front Suspension: Independent leaf spring w/dual hydraulic shocks
Brakes
- Brakes: Self-adjusting, rear-wheel mechanical drum
- Park Brake: Foot actuated, 3-position
Body & Tires
- Body and Finish: Front: Painted TPO; Rear: Painted Surlyn
- Tires: 205 x 55 – 10 Tubeless
- LxWxH: 92 x 48 3/4 x 71 in.
- Wheelbase: 65 1/2 in.
- Ground Clearance: 4 1/2 in.
- Tread-Front and Rear: Front/Rear: 36/40 in.
- Total Vehicle Weight: 975 lb. (Std Electric/ HP), 717 lb. (Std Lithium-Ion), 727 lb. (XR Lithium-Ion)
- Frame Type: AlumiCore™ — Ladder-style aluminum box beam
Product Specs
Engine
| Engine Type | 250 Amp DC Motor Controller |
| Horsepower | 13 HP |
Chassis
| Front Tires | TPO |
| Rear Tires | Painted Surlyn |
Dimensions
| Wheelbase | 65 1/2 in. |
| Length | 92 in. |
| Width | 48 3/4 in. |
| Height | 71 in. |
General
| Weight Capacity | 975 lb. |
